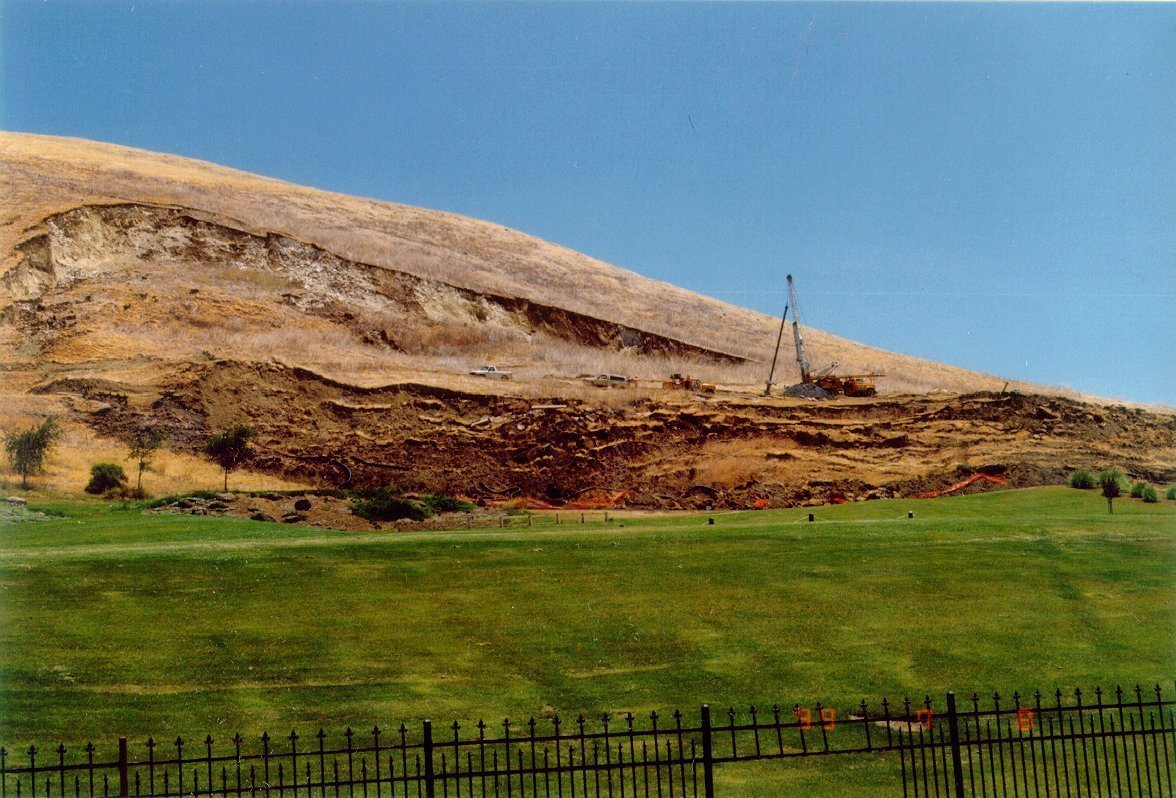

Oakhurst Slope Remediation, Clayton


( Page 1:  Preconstruction |Page 2:  Phase IA Reconstruction | Page 3:  Phase IB Restoration )

Click on image to enlarge

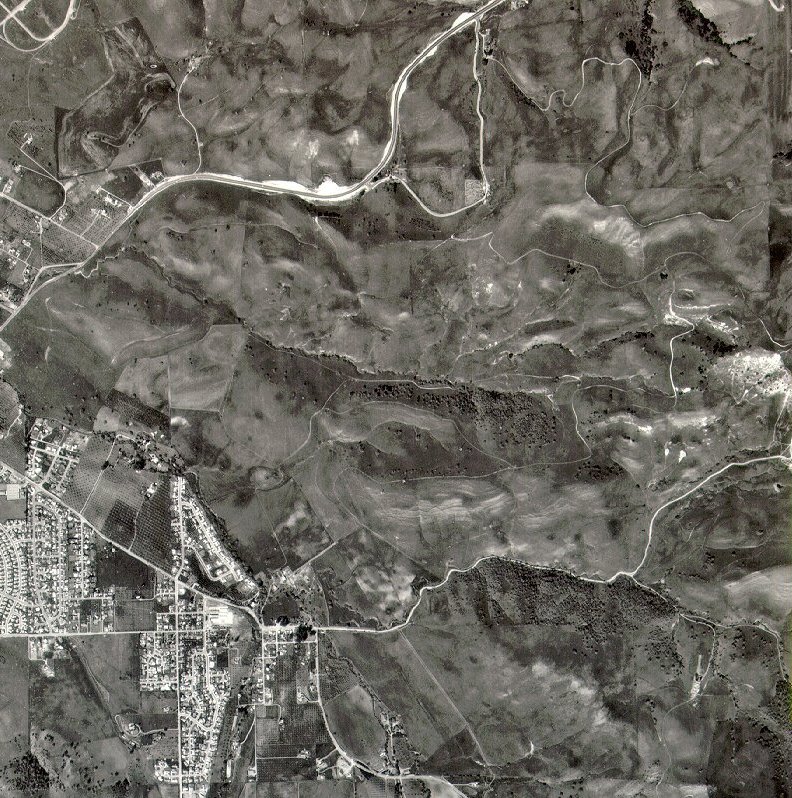

3/23/66  Pacific Aerial Surveys
AV-710-15-23/24/ 25
1:32,000 (1"=2,667')
Image covers 12,000' x 12,000'


5/28/69  Pacific Aerial Surveys
AV-905-09-01/ 02
1:12,000 (1"=1,000')
Image covers 4,500' x 4,500'

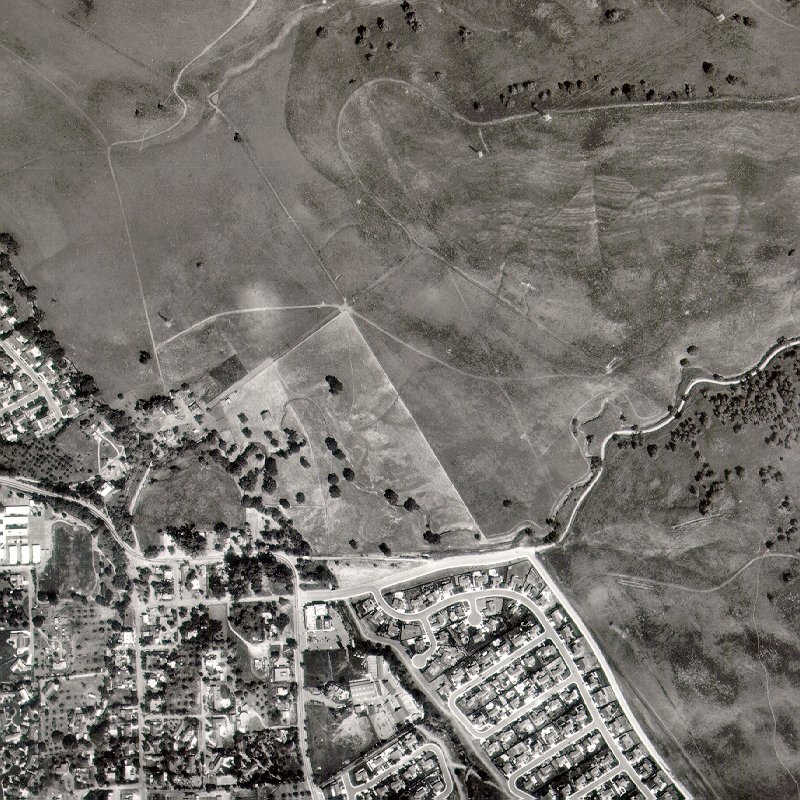

4/20/86  Pacific Aerial Surveys
AV-2861-07-01/ 02
1:12,000 (1"=1,000')
Image covers 4,500' x 4,500'

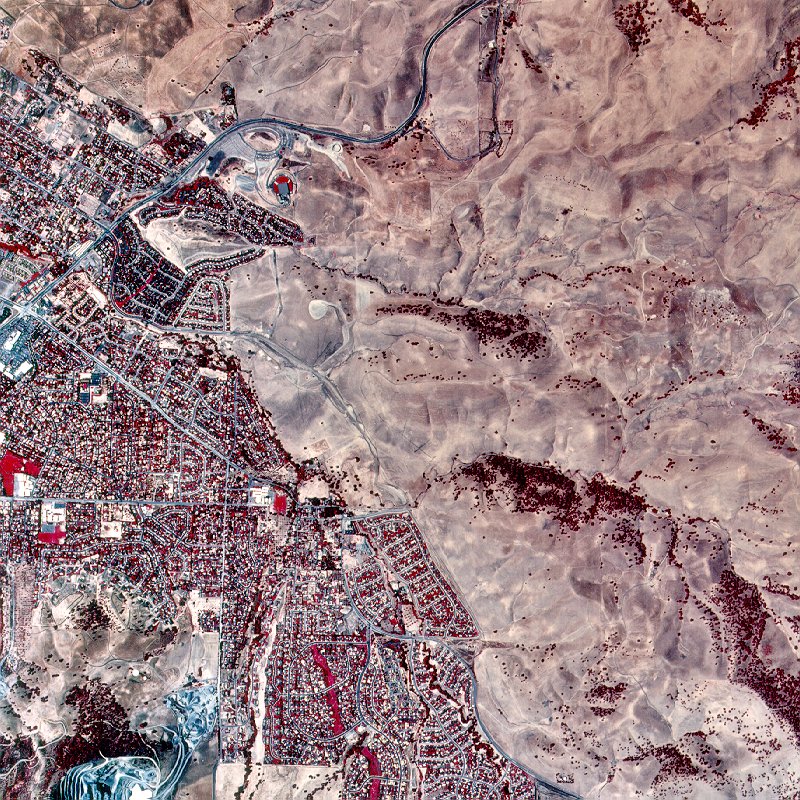

7/02/87  National Aerial Photography Program
USGS 519-105/ 106/107
1:38,000 (1"=3,167')
Image covers 14,250' x 14,250'

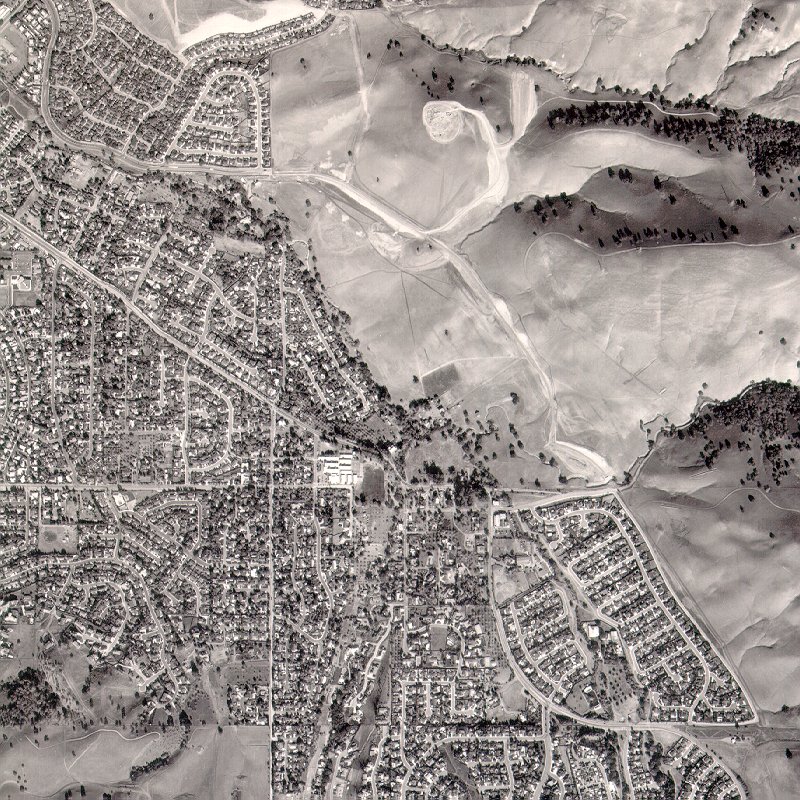

11/03/87
87109 6-1/2 /3
1:23,400 (1"=1,950')
Image covers 8,780' x 8,780'

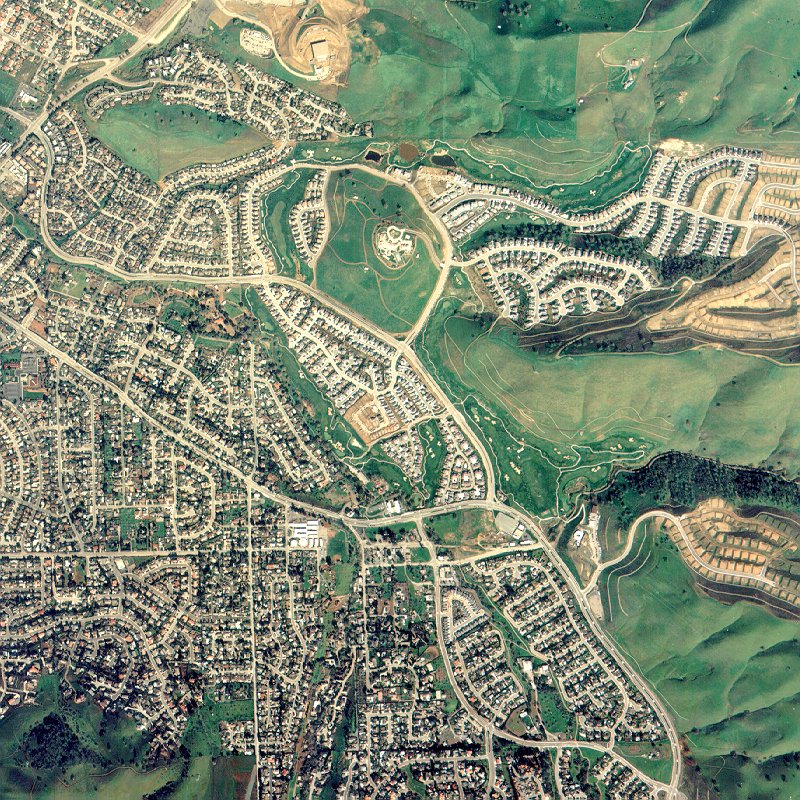

3/6/96  Pacific Aerial Surveys
8785 KAV-4936-12- 06/07
1:24,000 (1"=2,000')
Image covers 9,000' x 9,000'

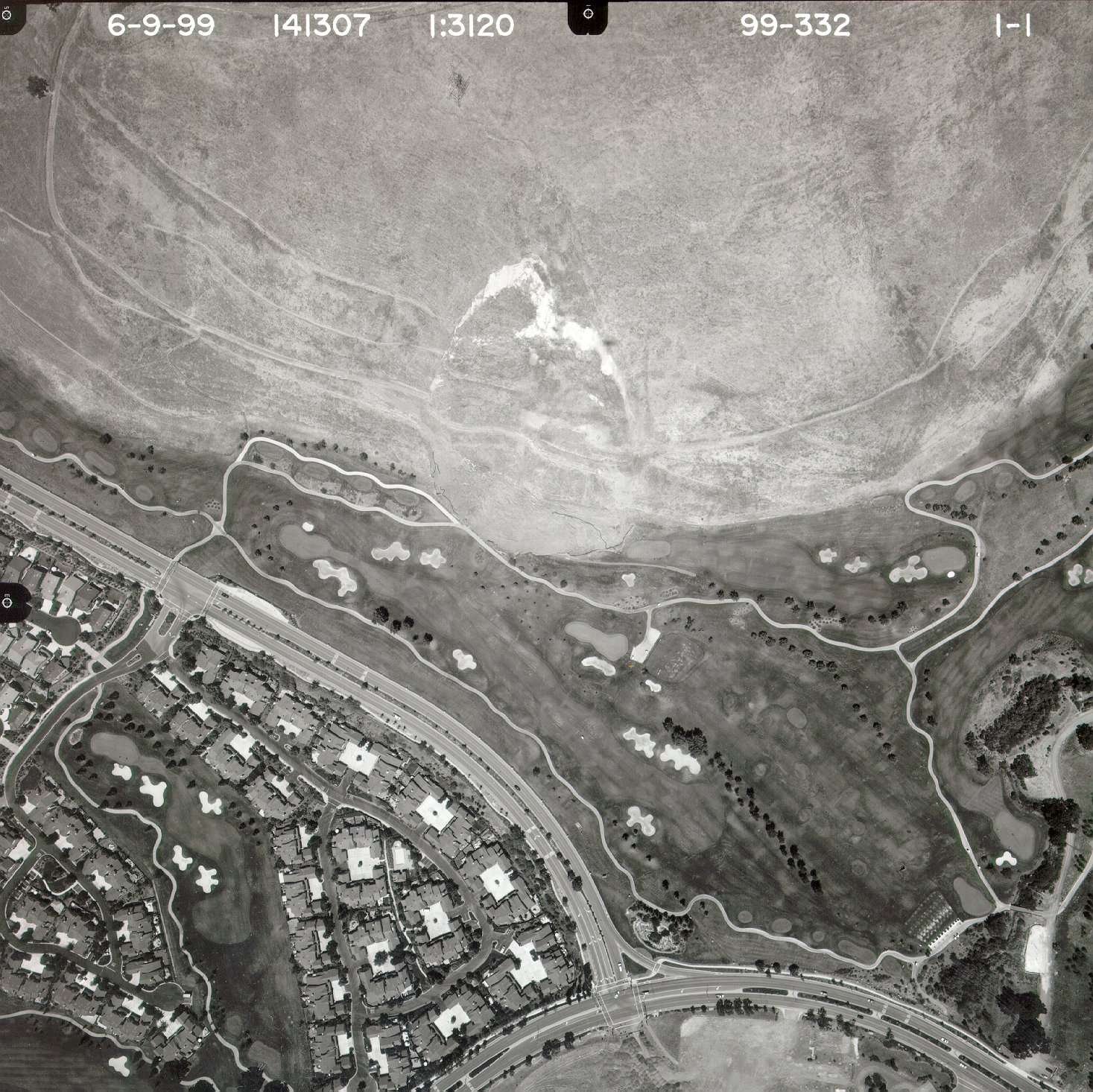

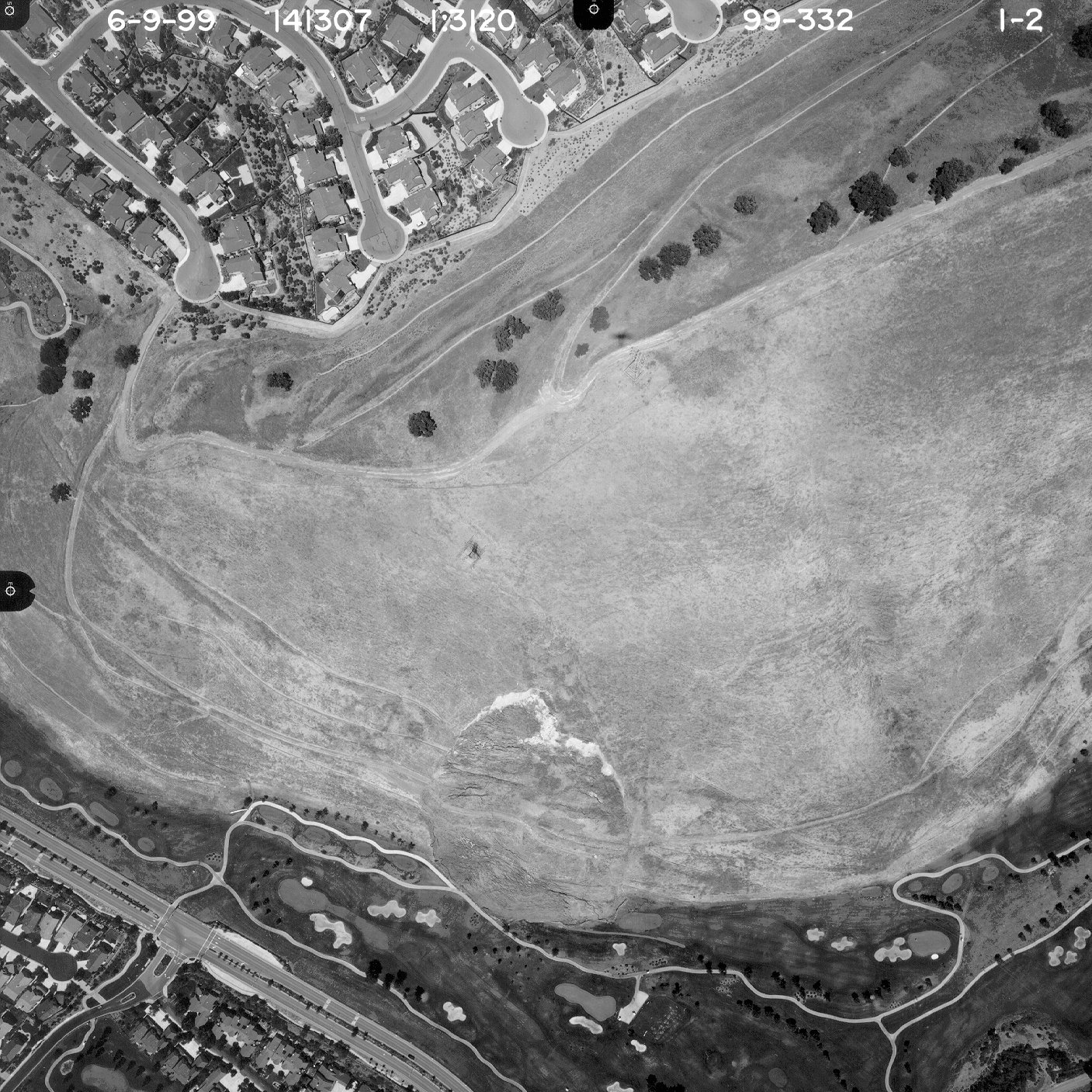

6/9/99 American Aerial Surveys
141307  99-332-1- 1/2
1:3,120 (1"=260')
Image covers 2,130' x 2,130'

6/9/99 American Aerial Surveys
141307  99-332-1-1/ 2
1:3,120 (1"=260')
Image covers 2,130' x 2,130'

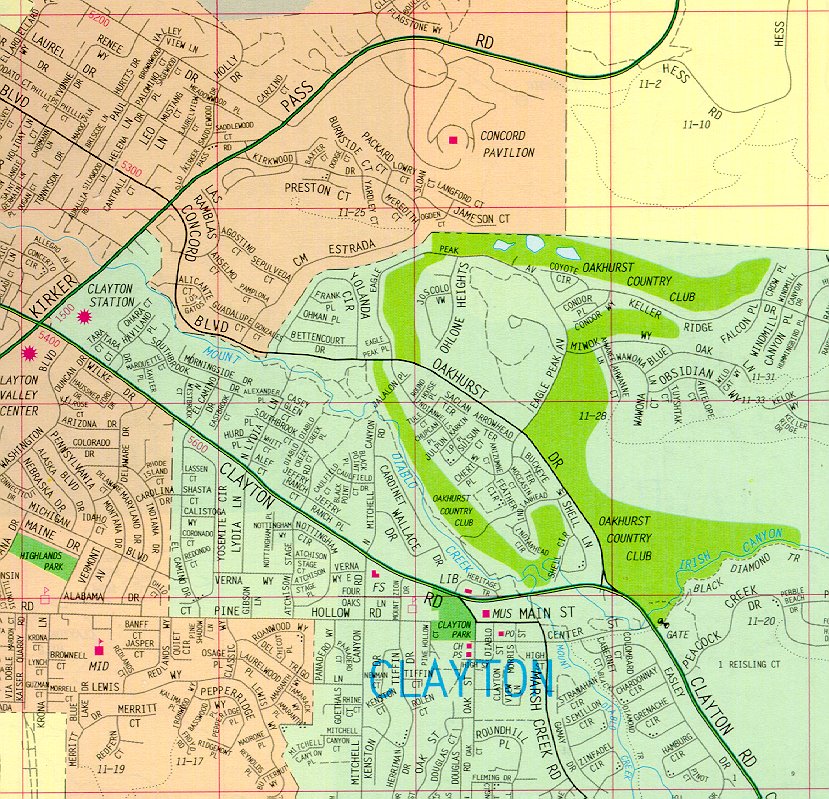

1999 Thomas Bros.
1:22,800 (1"=1,900')
Each grid covers 2,640' x 2,640'
Image covers 11,200' x 11,200'

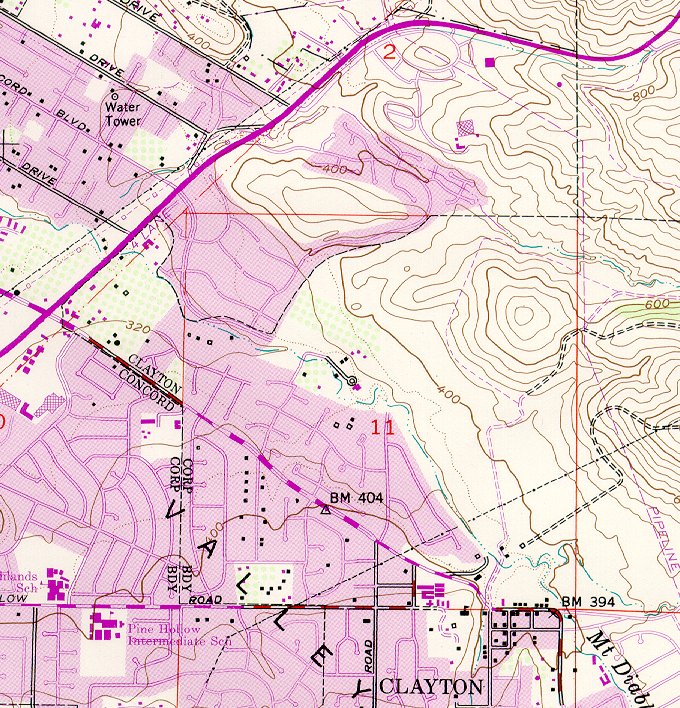

1953 USGS photorevised 1980
Clayton Quadrangle
1:24,000 (1"=2,000')
Image covers 9,500' x 9,500'

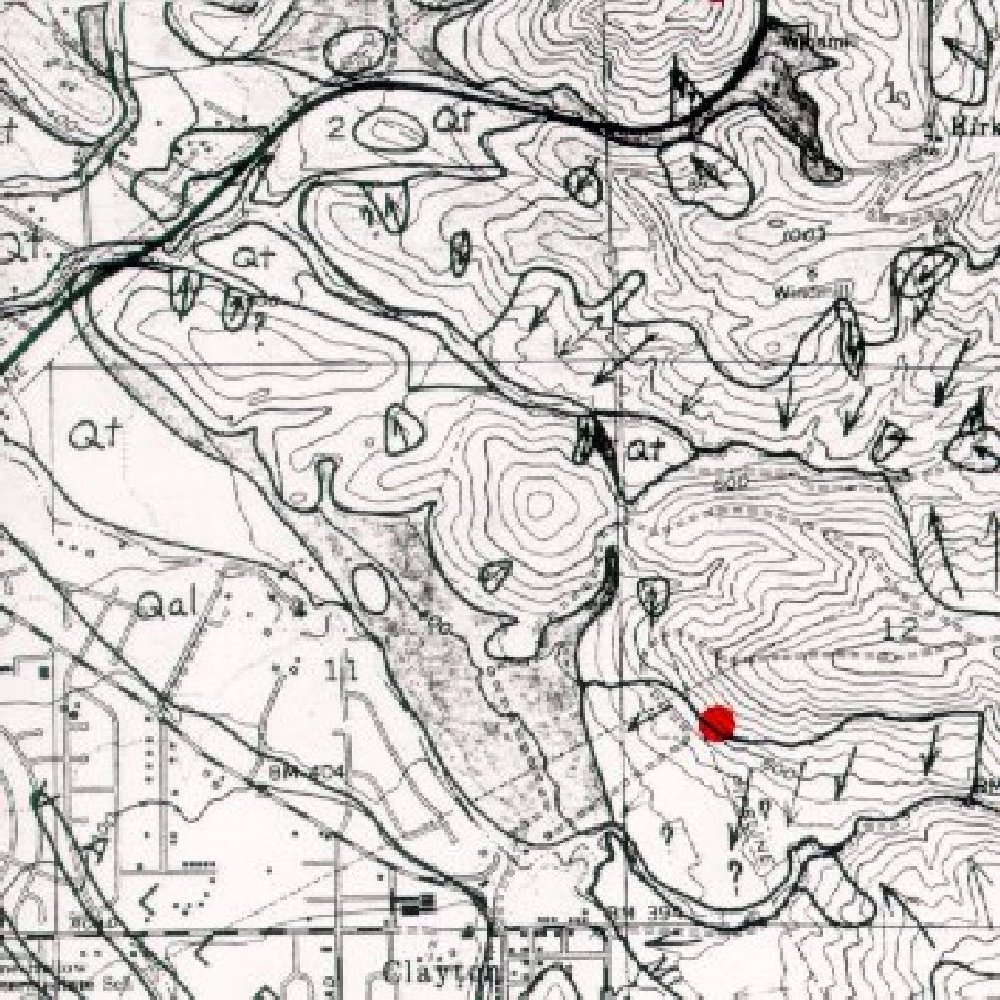

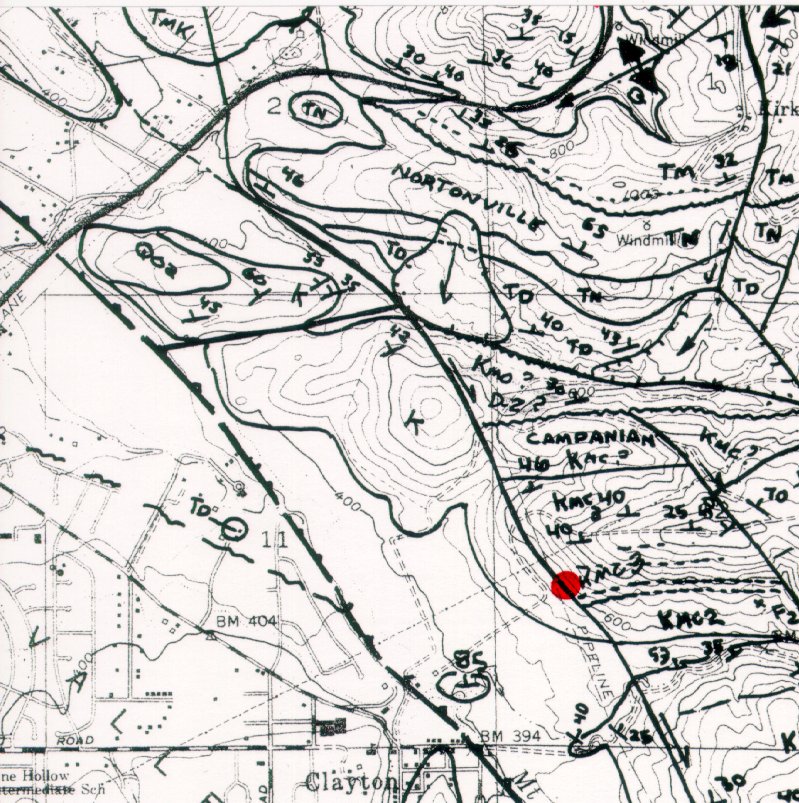

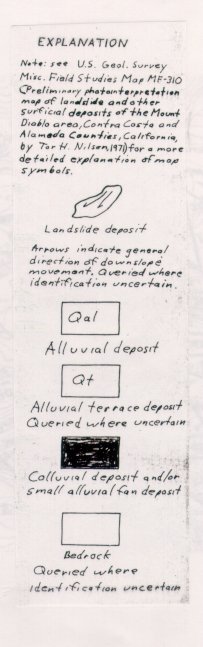

1975 Nilsen
Clayton Quadrangle
1:24,000 (1"=2,000')
Image covers 9,400' x 9,400'

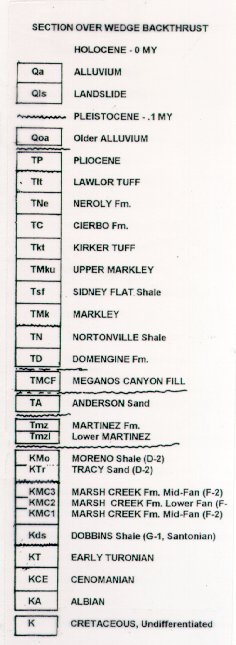

1995 Crane
Clayton Quadrangle
1:24,000 (1"=2,000')
Image covers 9,400' x 9,400'
